In short:
- Aperture: 61 mm
- Focal length: 274 mm with corrector
- High focal ratio f/4.5 for short exposure times
- Illuminated and corrected image field of 44 mm diameter - usable up to full-frame size format
- 7-element system with triplet objective and 4-element corrector
- Multi-coated APO triplet lens with two ED Elements free of chromatic aberration
- 2.5" RAP dual-speed focuser with 360° rotation with quick system
- Multifunction dovetail include
- Viewfinder shoe for viewfinders.
- Retractable dew cap
- Simple camera adaption via the M48 connection thread - working distance 55 mm or 75mm with M54
- 2" nebula filters can be easily adapted
|

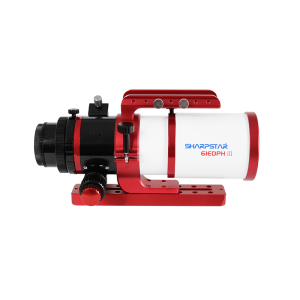

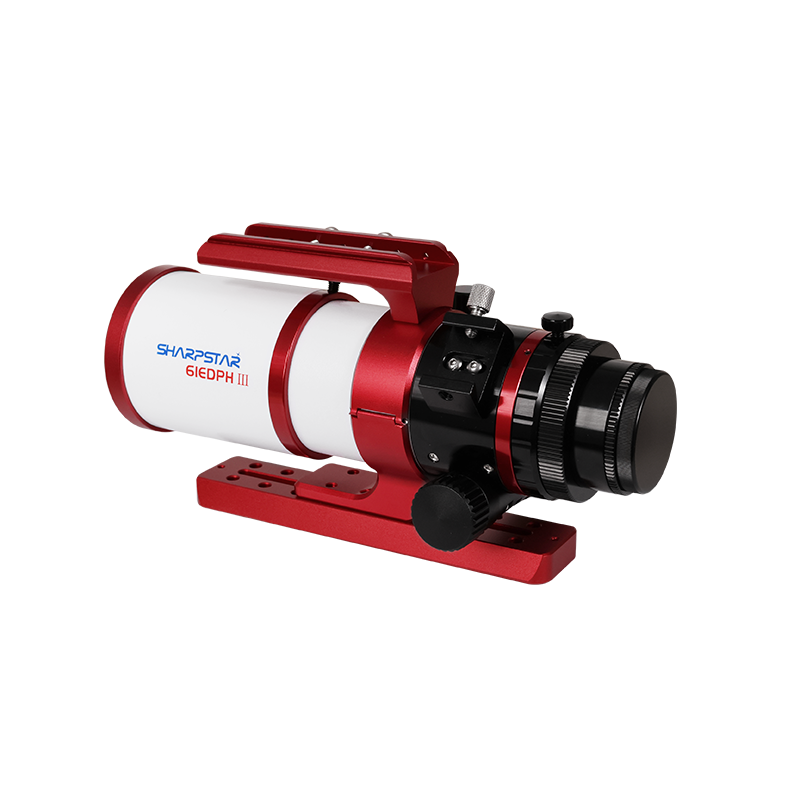

New 61EDPH V3 APO F4.5
The 61EDPH series has long been popular with astrophotography amateurs, in order to have a better user experience for users, Sharpstar has optimized the 61EDPHI Ⅱ and launched a new version - 61EDPH Ⅲ. 61EDPH Ⅲ has more diverse functions and greater performance. It is a great choice that can't be missed by astrophotographers.
The new 61EDPH Ⅲ still has high-quality optical standards like before and adopts a triplet air-spaced APO design. Compared to the 61EDPHⅡ, it upgraded to two pieces of low dispersion ED glass for more excellent imaging performance. It not only can be applied to visual observation, but also can provide higher-quality astrophotography.
61EDPH Ⅲ has a focal length of 360mm, a focal ratio of 5.9, and supports the 44mm full-frame image circle. It is a high-quality portable telescope.
Handle Upgrade
The 61EDPH Ⅲ upgraded the handle of the 61EDPHⅡ to a multifunctional handle, which can be connected to the universal vixen-style finder base. In addition, the 61EDPHⅢ is equipped with a 200mm long vixen dovetail plate, easier to connect to the equatorial mounts and accessories, and makes the OTA easier to balance on the mount.
The appearance has smooth and natural lines, with the classic red and white color scheme, very simple and generous. The tube uses high-quality CNC machining, high-grade surface painting, and polished oxidation, elaborate and durable.

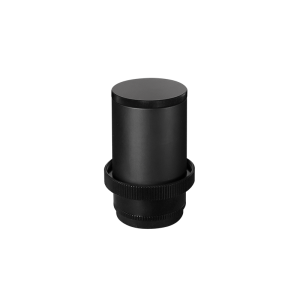

- The special full-frame reducer of 61EDPH Ⅲ: One end of the thread is M68 × 1, connected to the primary lens focuser; the other end of the thread is M48 × 0.75 and has a built-in 2" filter thread. The back focus is 55mm.
If it needs to be extended, the adapter can be screwed down to reveal the M54 × 0.75 male thread, and the back focus becomes 75mm. The focuser adopts a quadruplet air-spaced structure, supporting full-frame imaging. With the reducer, the focal ratio of 61EDPHⅢ reduced to F4.5 and the focal length reduced to 270mm, is the first choice for deep sky astrophotography.
The new 61EDPH Ⅲ has comprehensive upgrades on the primary lens, exterior design, and accessories, it is a telescope with high performance and versatility to meet the shooting needs of different users and provide a better shooting experience.
Features:
- Aperture size: 61mm
- Focal length: 360mm (original - 274 with reducer)
- Focal ratio: F/5.9 (original)
- Focal ratio with reducer: F/4.5
- Backfocus with reducer: 55mm from M48x0.75 - 75mm from M54x0.75
- Image Circle: 44mm
- Objective lens: Triplet air-spaced APO（including two ED glass）
- Limiting visual magnitude: 10.7
- Resolution: 1.93 arc second
- Tube length: 272mm（Dew shield contracted and without reducer）
- OTA weight: 1.48kg +0.4 with reducer
- Tube outer diameter: 75mm
- Rotator: oui
- Accessories: a tube ring, a dovetail plate, a handle
